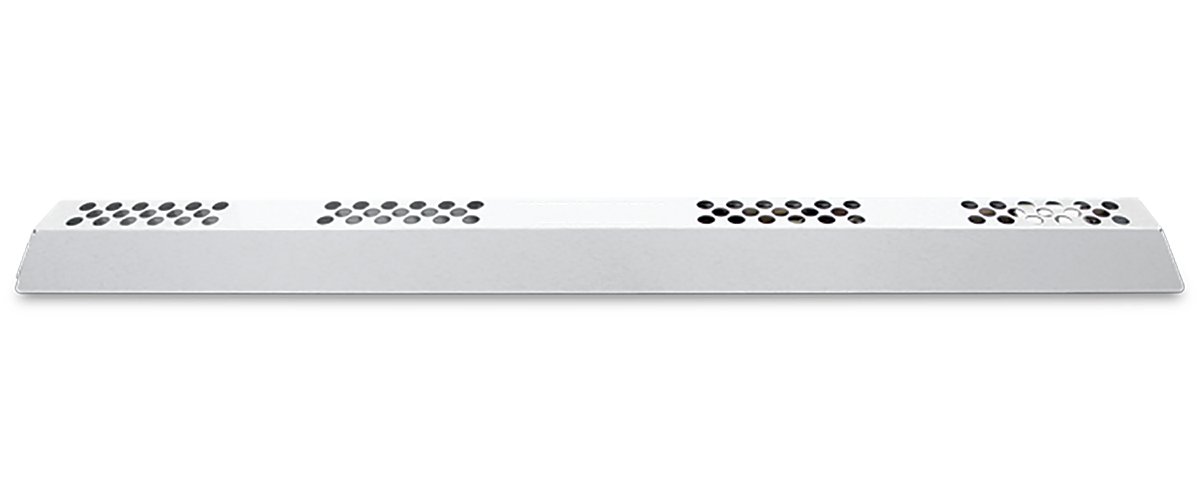

Sanctuairy Mini EM
The Sanctuairy Mini EM allows you to retrofit your mini-split HVAC system with ActivePure Technology to provide around-the-clock air purification in indoor spaces. Patented ActivePure Technology is an advanced air purification technology. It has been proven to reduce up to 99.9% of many common types of airborne contaminants in indoor spaces.
Benefits
The Sanctuairy Mini EM provides around-the-clock air purification in indoor spaces up to 500 sq. ft., while the HVAC unit is running. It’s an effective solution for your home or small business.
- Uses patented ActivePure® Technology, proven to reduce up to 99.9% of many common types of bacteria, viruses, and mold in indoor spaces
- Reduces VOC gases, smoke, and odors without the use of ozone
- Attaches easily to mini-split HVAC systems
- Discreet or concealed installation
- Requires only 20 watts of electricity
Specifications
Product Information
00670; Model: A1020B (No Ozone)
DOES NOT meet California requirements and cannot be shipped to California
Technology Included
ActivePure® Technology – (1) 5” Cell Assembly
Electrical
Input Voltage: 230 VAC; 50/60 Hz; 0.144 Amps
Power: 33 Watts Max
Mechanical
Distribution via air handler
Sound Level
49.6 dB(A)
Weight & Dimensions
1.0 lb (453.6 g)
1.3” H x 29.8” W x 2.6” D (3.2 cm x 75.6 cm x 6.7 cm)
Operating Temperature
(Return Air) 30ºF to 95ºF (-1ºC – 35ºC)
Recommended Maximum Coverage in a Contiguous Space*
Up to 1,000 sq. ft. (92.9 m2) with uniform air diffusion*
Warranty
Limited 3 year warranty
Terms and conditions may apply
Product Information
-
00670; Model: A1020B (No Ozone)
DOES NOT meet California requirements and cannot be shipped to California
Technology Included
- ActivePure® Technology – (1) 5” Cell Assembly
Electrical
- Input Voltage: 230 VAC; 50/60 Hz; 0.144 Amps
- Power: 33 Watts Max
Mechanical
- Distribution via air handler
Weight & Dimensions
- 1.0 lb (453.6 g)
- 1.3” H x 29.8” W x 2.6” D (3.2 cm x 75.6 cm x 6.7 cm)
Operating Temperature
- 35°F – 131°F (1.7 °C – 55 °C)
Recommended Maximum Coverage in a Contiguous Space*
- Up to 500 sq. ft. (46.4 m2), with uniform air diffusion*
Warranty
- Limited 2 year warranty
- Terms and conditions may apply
*
Recommended ceiling height to not exceed 10 feet. Solutions should be customized based upon a variety of factors including HVAC system capabilities, HVAC settings, air flows (taking into account walls, air pressure, and doors), ambient air temperature, humidity, variable density, known VOC concentrations, and other layers of protection.
